How do thermal protection systems safeguard satellites and spacecraft in space?

Thermal Protection Systems (TPS) are critical components of satellites and spacecraft, designed to safeguard them from extreme temperature variations and thermal stresses encountered in space. Here’s an overview of how these systems function:

1. Why Thermal Protection Systems Are Needed

Spacecraft and satellites are exposed to a range of thermal challenges:

• Extreme Heat: During atmospheric reentry or when exposed to direct sunlight, surfaces can reach temperatures over 1,500°C (2,732°F).
• Extreme Cold: In the shadow of a planet or in deep space, temperatures can drop to below -200°C (-328°F).
• Temperature Fluctuations: Rapid transitions between sunlight and shadow (e.g., during orbit) cause repeated thermal cycling.
• Heat from Internal Systems: Onboard equipment like electronics and propulsion systems generate heat that must be managed to avoid overheating.

Without proper thermal protection, components can fail, degrade, or lose functionality.

2. Key Functions of Thermal Protection Systems

1. Prevent Overheating: Protect spacecraft from solar radiation and heat generated during atmospheric entry.
2. Prevent Overcooling: Maintain operational temperatures for components in extremely cold environments.
3. Manage Internal Heat: Regulate heat generated by onboard systems to prevent localized hotspots.
4. Ensure Structural Integrity: Prevent thermal stresses and deformation of materials caused by extreme temperature changes.

3. Types of Thermal Protection Systems

A. Passive Thermal Protection

These systems do not require external power and rely on material properties and design to regulate temperature.

1. Thermal Insulation:
   • Materials like multilayer insulation (MLI), which consists of alternating layers of reflective foils and spacers, minimize heat transfer.
   • Used extensively on satellites to reduce radiative heat exchange.
2. Thermal Coatings:
   • Specialized coatings reflect sunlight or emit heat to regulate spacecraft temperature.
   • White coatings: High reflectivity to sunlight (used on external surfaces).
   • Black coatings: High emissivity to radiate heat effectively.
3. Phase Change Materials (PCMs):
   • Absorb and release thermal energy during phase transitions (e.g., melting/freezing) to maintain stable temperatures.
4. Radiators:
   • Passive surfaces designed to dissipate excess heat into space by radiating infrared energy.
   • Typically made of highly emissive materials like aluminum or titanium alloys.

B. Active Thermal Protection

Active systems use power and mechanisms to regulate spacecraft temperature dynamically.

1. Heat Pipes:
   • Closed-loop systems containing a working fluid that transfers heat from hot areas to cooler ones through evaporation and condensation.
   • Used for localized heat dissipation.
2. Fluid Loops:
   • Circulate a coolant fluid through the spacecraft to transport heat from hot components to radiators.
3. Heaters:
   • Electric or chemical heaters prevent freezing of critical components, especially in cold environments.
4. Thermal Louvers:
   • Adjustable panels or shutters control the amount of heat radiated by altering emissivity dynamically.

C. Ablative Thermal Protection

• How It Works: Ablative materials sacrifice their surface by burning or charring, carrying heat away as the material erodes.
• Applications: Primarily used during atmospheric reentry (e.g., heat shields on capsules like Apollo, Orion, and SpaceX Dragon).
• Examples of Materials:
  • Carbon-based composites.
  • Phenolic-impregnated carbon ablator (PICA), used in SpaceX’s Dragon capsule.

4. Thermal Protection for Specific Mission Phases

A. Launch Phase

• Protection against aerodynamic heating during ascent through Earth’s atmosphere.
• Insulating layers shield the payload and components from intense vibrations and thermal loads.

B. On-Orbit Operations

• MLI and thermal coatings regulate temperatures during long-term exposure to space conditions.
• Radiators and heat pipes manage the heat from internal systems, keeping electronics and instruments within operational limits.

C. Reentry

• Ablative materials or reinforced carbon-carbon (RCC) surfaces protect spacecraft from intense frictional heating caused by reentry speeds.
• Heat shields, like those on the Space Shuttle or Mars rovers, are critical for surviving temperatures exceeding 1,500°C (2,732°F).

D. Deep-Space Missions

• Specialized insulation and heaters maintain stable temperatures far from the Sun, where solar radiation is minimal.
• Radioisotope heater units (RHUs) or electric heating systems are often used for missions to cold destinations like Mars, Europa, or interstellar space.

5. Materials Used in Thermal Protection Systems

1. Carbon-Carbon Composites:
   • High strength and thermal resistance.
   • Used in reusable heat shields (e.g., Space Shuttle tiles).
2. Ceramics and Silica Tiles:
   • Extremely heat-resistant and lightweight.
   • Used for external thermal insulation on spacecraft.
3. Aerogels:
   • Lightweight, low-density materials with excellent thermal insulation properties.
   • Used in insulating sensitive components and instruments.
4. Polymers and Resins:
   • Phenolic resins and other polymers are used in ablative heat shields.

6. Examples of Thermal Protection Systems in Action

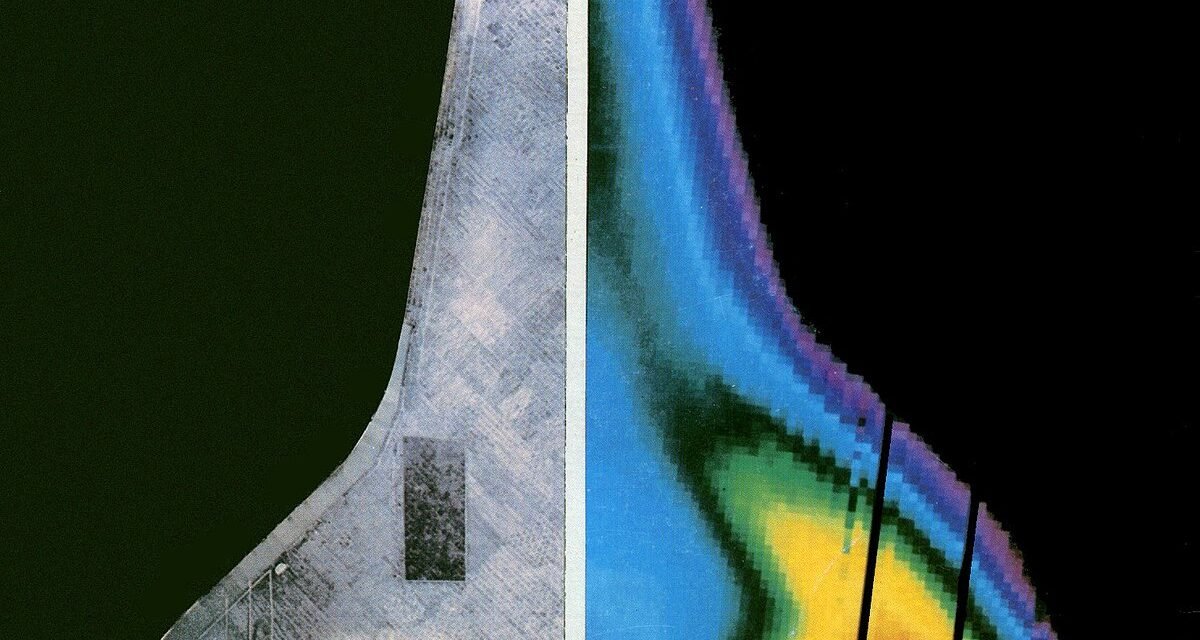

• Space Shuttle:
  • Featured reusable silica tiles and carbon-carbon composites for thermal protection during reentry.
• Mars Rovers (e.g., Perseverance):
  • Ablative heat shields protected the spacecraft during entry into Mars’ atmosphere.
• International Space Station (ISS):
  • Employs MLI blankets and radiators to maintain stable temperatures for astronauts and equipment.
• Parker Solar Probe:
  • Uses a specially designed carbon-composite shield to withstand temperatures exceeding 1,300°C (2,372°F) near the Sun.

7. Challenges and Innovations

• Material Longevity: Ensuring materials endure prolonged exposure to radiation and thermal cycling.
• Efficiency Improvements: Developing lighter, thinner, and more efficient insulation to maximize payload capacity.
• Advanced Coatings: Creating coatings that adapt to thermal conditions dynamically.
• Reusable Systems: Improving durability and reusability for multiple missions, as seen in SpaceX’s Starship.

Thermal protection systems are essential for ensuring spacecraft and satellite integrity, performance, and longevity in the extreme and variable conditions of space. Continuous innovation in materials and designs is key to meeting the demands of future space exploration and operations.
